全一贸易 / 产品系列 / 物流机械 / 金茂搬动车

金茂手动搬动车
[快捷键:咨询本产品]

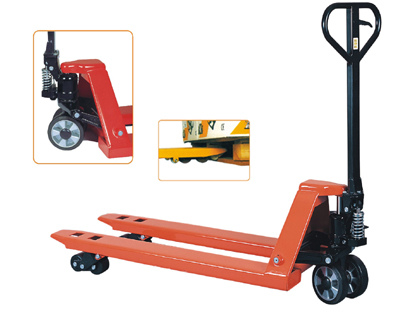

手动液压搬运车

CBYA手动液压搬运车



液压缸体为优质钢焊接而成,柱塞杆、泵芯镀硬铬,耐磨、耐腐蚀。

分油阀为整体结构,便于维修

脚踏开关板具备空载快速下隆功能。

Top quality hydraulic pump with welded construction,Hard

chrome plated pistion and pump plunger ensuer durability and

 corrosion resistance

Valve as a whole item,easy service

Foot switch board has quick lowering function when unload





额定起重量            Capacity(kg)                 1000  1500  2000  2500  3000

货叉低放高度(h2    Height of lowered(mm)          75    83

货叉最大高度(h1    Max heightmm            185   195

载荷轮                Load wheel single/tandemmm  Φ73×94   Φ80×68

货叉长度(L1        Length of forkmm          1150   1220

整车宽(W          Overall fork width(mm)          520  550   685

整车长度(L          Overall length of truck(mm)       L1+360

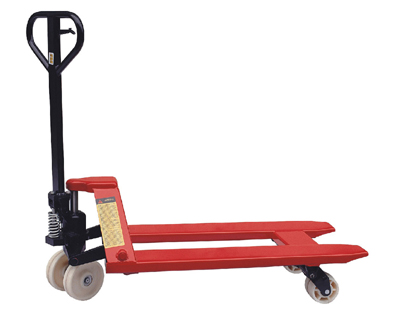

CBYB手动液压搬运车



液压缸体用优质钢焊接而成,活塞式液压泵活塞杆、泵芯镀硬铬,耐磨、耐腐蚀。

分油阀为整体结构,便于维修。

脚踏开关板具备空载快速下降功能。

Top quality hydraulic pump with welded construction,Hard chrome plated pistion and pump plunger ensuer durability and corrosion resistance

Valve as a whole item,easy service

Foot switch board has quick lowering function when unload



额定起重量            Capacity(kg)                              2000  2500  3000

货叉低放高度(h2    Height of lowered(mm)                      83

货叉最大高度(h1    Max heightmm                        195

载荷轮                Load wheel single/tandemmm             73×94    80×68

货叉长度(L1        Length of forkmm                      1150      1220

整车宽(w           Overall fork width(mm)                     520    550    685

整车长度(L         Overall length of truck(mm)                  L1+352







CBYD手动液压搬运车



液压缸体为整体铸件结构,密封性强、柱塞杆、泵芯镀硬铬,耐磨、耐腐蚀。

脚踏开关板具备空载快速下降功能。

Top quality hydraulic pump with welded construction,Hard chrome plated pistion and pump plunger ensuer durability and corrosion resistance

Foot switch board has quick lowering function when unload



额定起重量            Capacity(kg)                              2000  2500  3000

货叉低放高度(h2    Height of lowered(mm)                          75     83

货叉最大高度(h1    Max heightmm                              185    195

载荷轮                Load wheel single/tandemmm               73*94    80*68

货叉长度(L1        Length of forkmm                      1150               1220

整车宽(w           Overall fork width(mm)                     520     550      685

整车长度(L         Overall length of truck(mm)                  L1+378





CBYN手动液压搬运车







液压缸体为优质钢焊接而成,柱塞杆、泵芯镀硬铬,耐磨、耐腐蚀。

安全阀过载保护。

超高强度货叉结构具有满载慢降、空载快降功能。

Top quality hydraulic pump with welded construction,Hardchrome plated pistion and pump plunger ensuer durability and corrosion resistance.

Super-High strong steel frame with slw lowering when load and quick lowering when unload

额定起重量            Capacity(kg)                             2000  2500  3000

货叉低放高度(h2    Height of lowered(mm)                     75    83

货叉最大高度(h1    Max heightmm                       185   195

载荷轮                Load wheel single/tandemmm            Φ73×94        Φ80×68

货叉长度(L1        Length of forkmm                     1150         1220

整车宽(w           Overall fork width(mm)                    520    550   685

整车长度(L         Overall length of truck(mm)                 L1+352





CBYAA-LOW超低放搬运车



额定起重量            Capacity(kg)                               2000  2500  3000

货叉低放高度(h2    Height of lowered(mm)                       65

货叉最大高度(h1    Max heightmm                         180

载荷轮                Load wheel single/tandemmm              Φ63×94

操纵轮                Steering wheel(mm)                         Φ160×56

货叉长度(L1        Length of forkmm                       910      1220

整车宽(w           Overall fork width(mm)                      520

整车长度(L         Overall length of truck(mm)                   L1+450





液压拖纸车

额定起重量            Capacity(kg)                       2000

货叉低放高度(h2    Height of lowered(mm)               140

货叉最大高度(h1    Max heightmm                 250

载荷轮                Load wheel single/tandemmm      Φ130×94

转向轮                Steering wheel(mm)                 Φ180×56

货叉长度(L1        Length of forkmm               1000  1100    2100

整车宽(w           Overall fork width(mm)              450  500      685

整车长度(L         Overall length of truck(mm)           L1+360



侧向行走搬运车CBYM-SR







货叉低放高度83mm

Height of lowered is 83mm

当起升高度为83-mm-163mm时,搬运车常规行车,承载重量2000kg2500kg

Truck is Suitable for walking commonly from 83mm to 163mm,capacity 2000kg or 2500kg

当起升高度为165mm-200mm时,搬运车侧向行走,承侧重量1000 kg1500kg

Truck is suitable for walking aside from 165mm to 200mm,capacity 1000kg or 1500kg

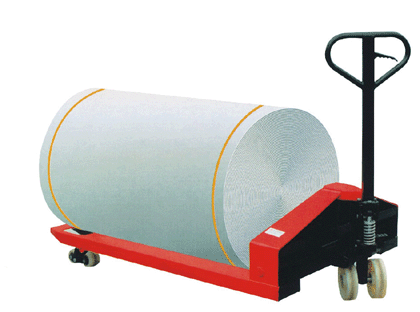

卷筒纸搬运车(槽刚)

最上卷筒纸直径

Min roll diameter               Φ800mm

最大卷筒纸直径

Max roll diameter               Φ200mm

最大卷筒纸长度

Mar roll length                 1500mm



手动液压油桶搬运车

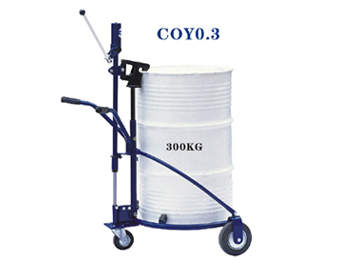

COY0.3



COY0.3型可制成折叠式,方便运输。

COY0.3 can be made into foled form for easy transportation.

型号Model                                       COY0.3

 额定起重量Rated lifting capacity()                   300

 起升高度Lifting height(mm)                           100

外形尺寸长×宽×高Overall dimensionL×W×H(mm)      765×900×1150

自重Self Weight()                                  32



COY0.3A



COY0.3A型的起升高度方便使用台秆称重。

The lifting height of COY0.3A is easy for weighting the drum on platform balance .

型号Model                                       COY0.3A

 额定起重量Rated lifting capacity()                   300

 起升高度Lifting height(mm)                           500

外形尺寸长×宽×高Overall dimensionL×W×H(mm)      1025×810×1180

自重Self Weight()                                  65

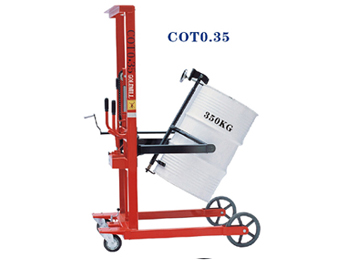

CTOTO.35







型号Model                                           COT0.35

额定起重量Rated lifting capacity()                      350

起升高度Lifting height(mm)                             1460

外形尺寸长×宽×高Overall dimensionL×W×H(mm)        1460×920×2037

自重Self Weight()                             200

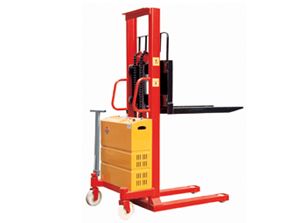

CDD电动托盘堆垛车

CDD1.5



电动装卸车是一种轻型起重装卸机械,用于仓库、商场、港口、车站和工厂车间等场所。具有劳动强度低,操作简单、灵活,作业效率高,使用安全等特点。

型号Model                               CDD1         CDD1.5       CDD2       CDD0.4B

额定起重量Capacity(kg)                    1000          1500          2000        400

最大起升高度Max lifting height(mm)          1600          1600          1600        1200

货叉最小高度Min fork height(mm)            90            90            90          90

货叉长度Length of fork(mm)                 1000          1150          1150        640

货叉外宽Overall width of fork(mm)           580           680           700         560

总长Overall lengyth(mm)                    1671          1680                      1153

总宽Overall width(mm)                     740           740                       582

总高Overall height(mm)                     2090          2090                      1500

蓄电池Storage battery(v/ah)                  12/180         12/180         12/180       12/180

充电器Charger(ac/v)                        110/220        110/220        110/220      110/220

最小转弯半径Min turning radius(mm)         1450          1450          1335        1170

前轮Front wheel(mm)                       Φ80          Φ80          Φ80        Φ80

后轮Rear wheel(mm)                        Φ180         Φ180         Φ180       Φ180

注:根据用户要求可设计制造交流电源为动力。
